2008 Hawker 850XP

AIRCRAFT HIGHLIGHTS

Honeywell SSDR Flight Data Recorder
HIRF – High Intensity Radiated Field Kit
Manufacture Date: 2008
Meets EASA & JAR OPS-1 Requirements
No Damage History

AIRFRAME

Total Time:	2100.9 Hours (as at 15th October 2025)
Total Landings:	1520 Landings (as at 15th October 2025)

ENGINES

	Honeywell TFE-731-5BR
	Left	Right
Total Time	2100.9 Hours	2016.3 Hours
Total Cycles	1520 Cycles	1471 Cycles

APU

Model	Honeywell 36-150(W)
Total Hours	1862 Hours (as at 20th October 2025)
	Approved In-flight Operations to FL30

MAINTENANCE

Engines & APU Enrolled on MSP Gold
Airframe/Avionics/Labour on JSSI Airframe Program

NAVIGATION COMPLIANCE

ADS-B Out
WAAS / LPV
TCAS 4000
8.33 kHz Spacing
FM Immunity
RVSM Compliant

AVIONICS

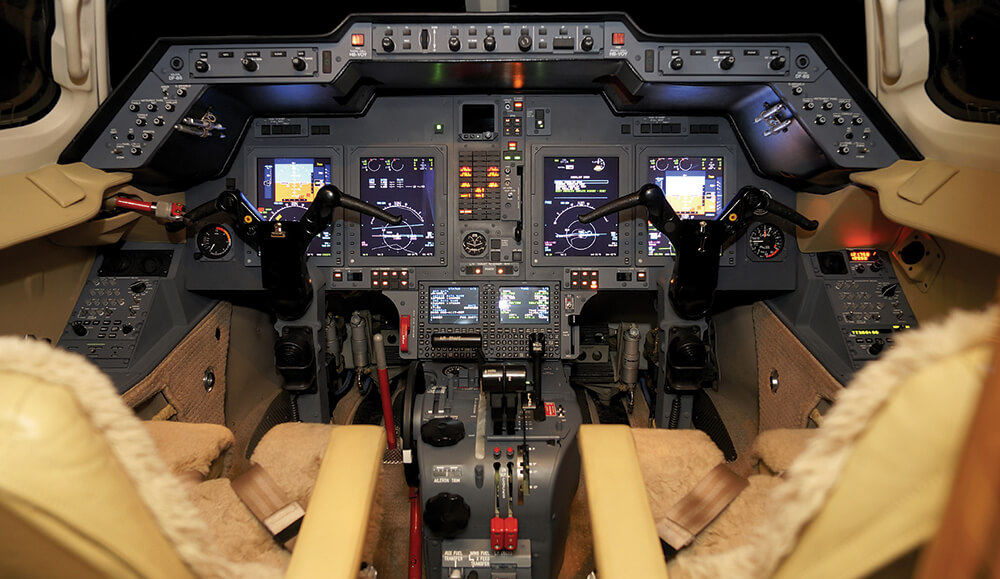

Collins Pro Line 21 Integrated Avionics System including;

Four Collins EFIS Flight Displays 8”x10” including 2 Primary & 2 Multifunction Displays
Two Collins AHC-3000 AHRS (Attitude Heading Reference System)
Two Collins CDU-6200 Control Display Units for FMS & Radio Control
Single Collins Automatic Flight Control System w/dual FGC-3000 Flight Guidance Computers
Two Collins VHF-40000 Transceivers with 8.33 KHz Spacing
Single Collins HF-9000 High Frequency Transceiver with CSD-714 SELCAL
Two Collins NAV-4500 Receivers VOR/LOC Glideslope/Marker Beacon w/FM Immunity
Single Collins TCAS 4000 Traffic Alert and Collision Avoidance System
Single Collins Integrated Flight Information System with Optional 2nd FSU-5010 File Server Unit
Two Collins FMS-6000 Flight Management Systems (MNPS, RNP-5,RNP-10, P-RNAV Requirement)
Two Collins GPS-4000A Global Positioning Systems (GPS) 12 Channel
Two Collins DME-4000 Distance Measuring Equipment
Two Collins TDR-94 Transponders Enhanced Surveillance w/Flight ID, Diversity w/Dual Antennas
Two Collins ADC-3000 Air Data Computers – RVSM Capable
Two Collins Audio Systems-dB Systems digital Control Audio Panels
Single Collins TWR-850 Turbulence Detection Weather Radar w/Display Capability on any AFD
Single Collins ALT-4000 Radio Altimeter measures up to 2500′ / Displays on PDF
Single Collins MDC-3110 Maintenance Diagnostics Computer
Single Honeywell Mark V Enhanced Ground Prox Warning w/ Windshear / Satisfies Class A & B AWS
Single Universal CVR-120 Cockpit Voice Recorder with 2 hour recording capability
Single Airtex C 406-2 ELT (SAR type) with Nav Interface
Single Meggitt Mark II Secondary Flight Display System with Independent Air Data Unit
Collins CST-23C Standby Radio Tuner, Cockpit Speaker Inhibit Switch, Angle of Attack System

ADDITIONAL EQUIPMENT

AV320 World Wide Weather w/ ACARS In-flight Communication Services
AV300 Paperless Cockpit
AV130 Honeywell solid state FDR (SSFDR)
AV165 2nd Collins ADF
AV250 High Intensity Radiated Field (HIRF) kit
AV205 AirCell ST3100 iridium phone w/ cordless cockpit & cabin handsets
MS20 Long range oxygen (2 x 750 ltr bottles)
MS40 Precise Flight Pulselite system
MS45 LoPresti High Intensity Discharge Landing and Taxi Lights
MS100 Additional stowage drawers under four forward seats
MS110 Five drop down inboard armrests
MS150 Belted lavatory seat
MS170 Additional cabin ashtray inserts (each)

CABIN INFORMATION & ENTERTAINMENT

CE150 Cabin audio/video entertainment system
CE25 Airshow 410 system
CE30 Airshow briefer system
CE75 2nd 15” LCD monitor
CE90 Display computer on cabin monitor
CE115 110 VAC power outlet in cockpit on copilot’s side

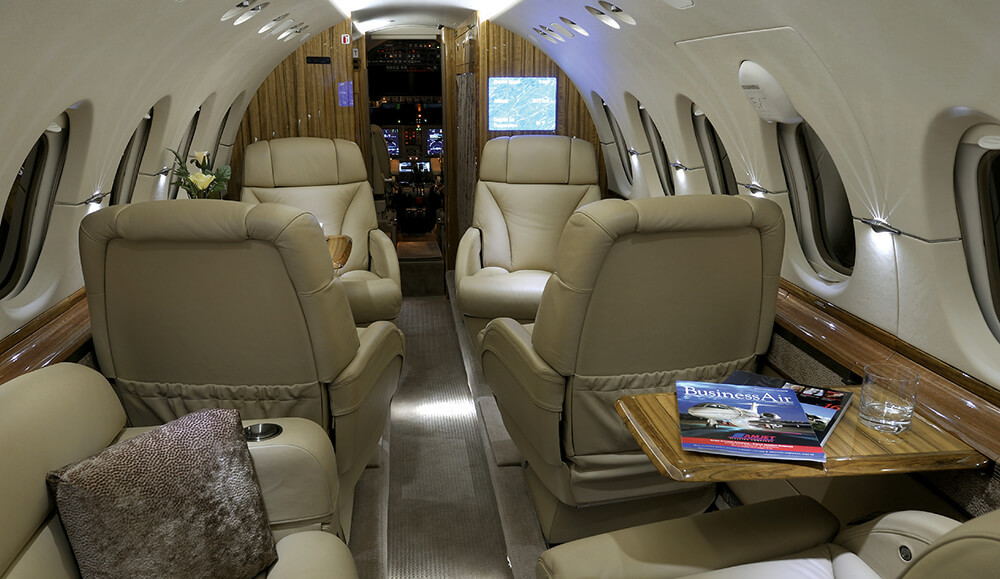

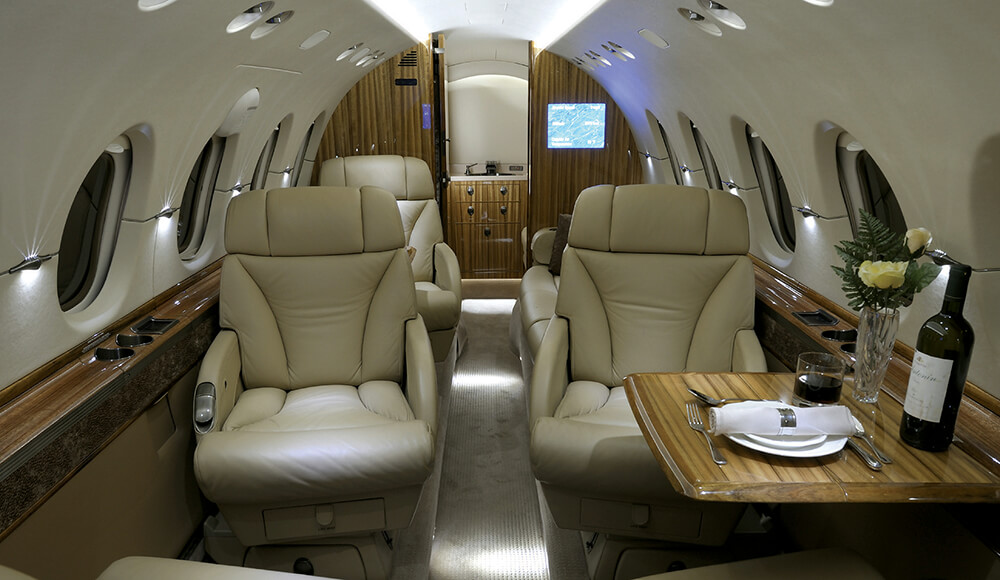

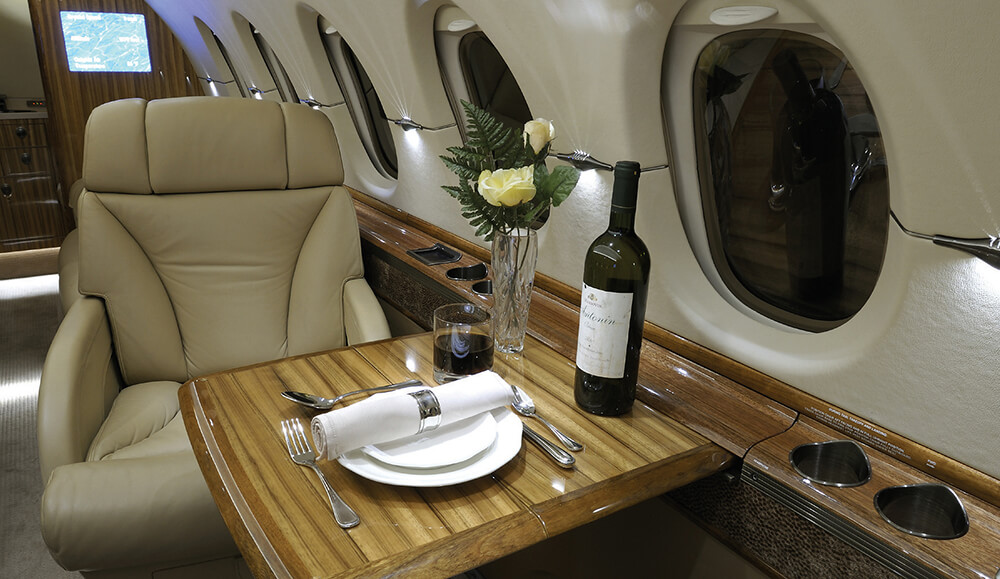

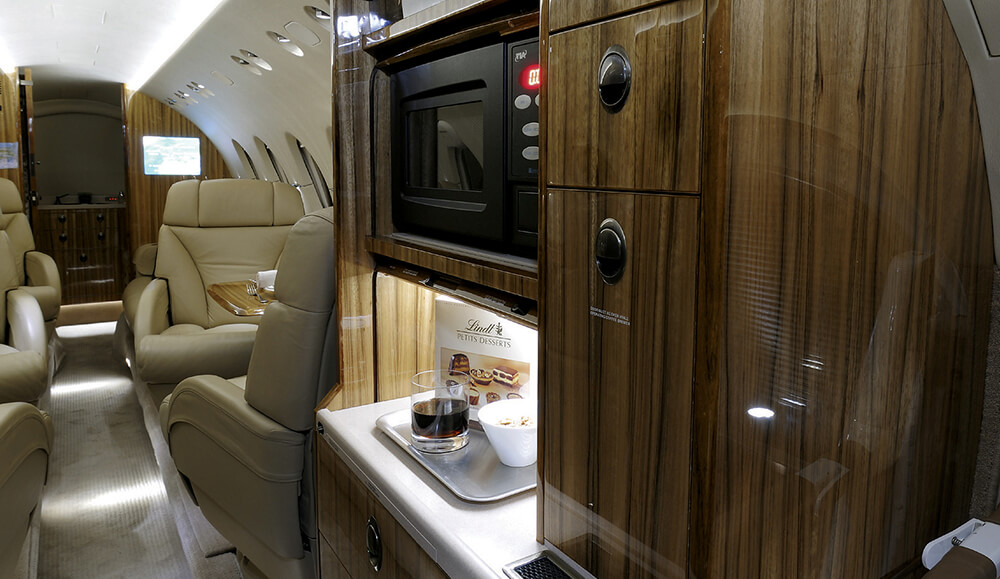

INTERIOR

Eight Passengers with 5 Individual Pedestal based Chairs arranged in a Forward Double Club,
Aft 3 Place Divan opposite Fwd Facing Chair,
Certified Belted Lavatory,
Observer Stowable Jump Seat, Certified for TTOL.

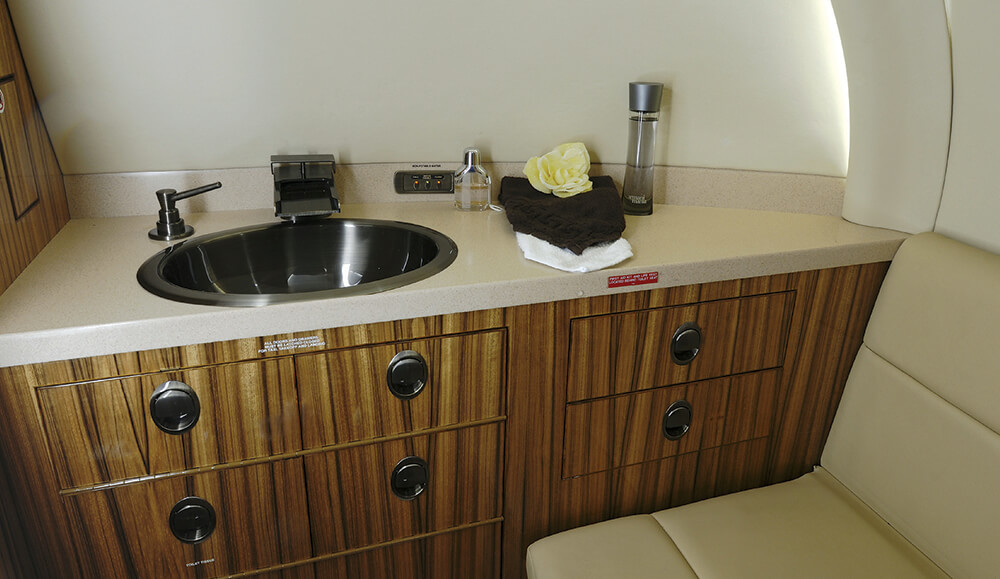

Tan Leather with Medium High Gloss Wood Veneer Finish
on Tables, Galley, Dividers, Storage Cabinets, Doors

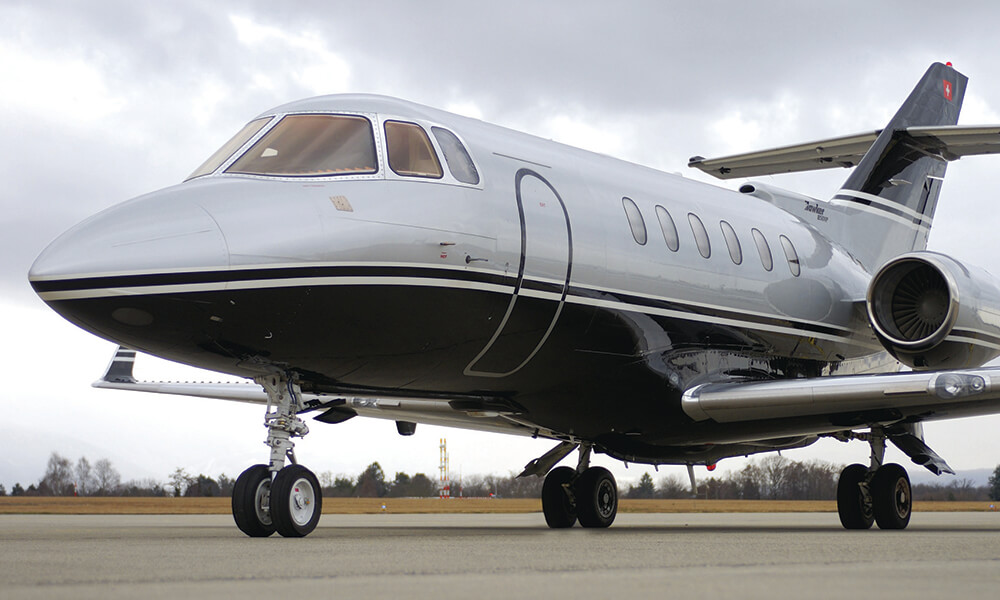

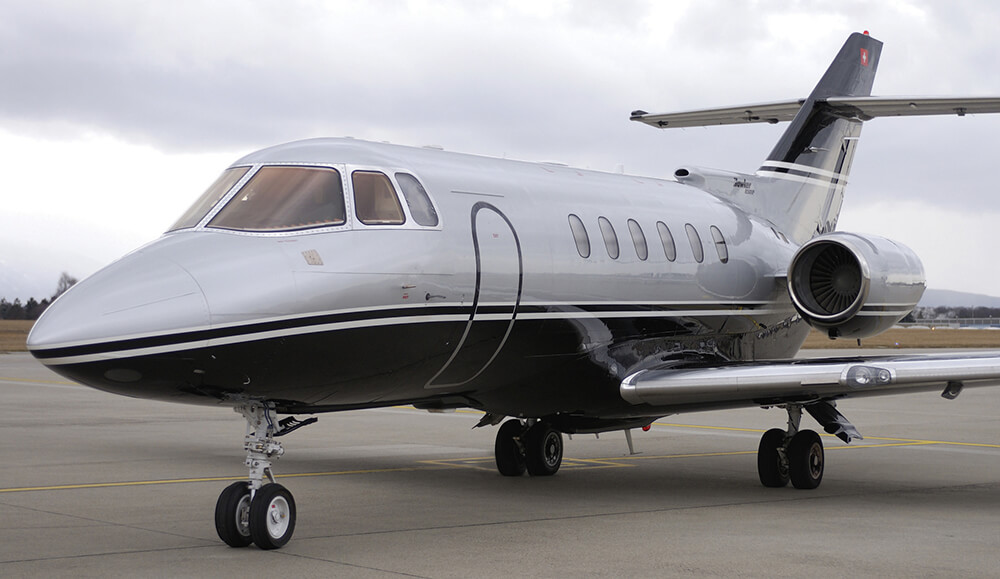

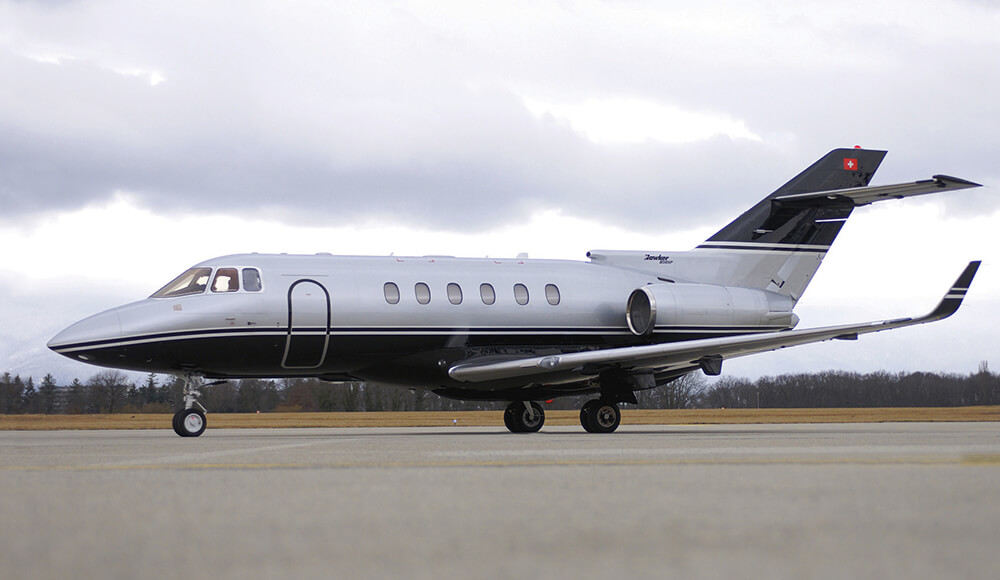

EXTERIOR

Upper Fuselage Silver Metallic
Lower Fuselage and Wings Black White Accent Stripes

DUE LIST

VH-BMW 24 Mos x 800 Hour Due List (Download)
